Microscope Explained: Types, Uses, Parts, How It Works & Buying Guide
If you’ve ever looked through a microscope used in schools and observed an onion cell, or an ounce of pond water or a drop of pond water, you’ve seen the light microscope. It’s the most popular kind of microscope found in schools, clinics and research labs across all over the world, and for reasons that are cost-effective, user-friendly and lets you observe living things grow and move in real-time.
Light microscopes, sometimes referred to as the optical microscope makes use of sunlight and a set made of lenses that magnify things that are too small for your naked eyes. It is the gateway to microscopes for undergraduates, a regular instrument for lab technicians in clinical laboratories and a preferred instrument for those who enjoy examining insects and minerals or fish in ponds.
This guide explains the definition of a light microscope what it is, how it works and the various types of light microscopes that are available, what you should be looking for when purchasing one and how to use and maintain it in a safe manner.
What Is a Light Microscope?
The term “light microscope” refers to an optical device which transmits visible light to one or more lenses in order to create a magnified image of a small or specimen. It’s also referred to by a number of associated names like the optical microscope (also known as a compound microscope) biological microscope, or student.
The majority of light microscopes have some common characteristics:
- Glass lens (an the objective lens, and also the eyepiece) to bend light and focus it
- The typical usable magnification ranges between 40x and 1,000x, and can go as much as 1,500x when using oil immersion
- They aren’t able to discern structures smaller than 200 nanometers due to the physical limitations of visible light.
- They require a light source such as natural light bounced off of a mirror, or an integrated LED or an halogen bulb
The last sentence regarding resolution limits is one important to keep in mind, since it’s the reason for the confusion that people face regarding what these instruments are able to do and not -More on that later.
Why the Light Microscope Still Matters
It’s easy to conclude that modern technology has made this light microscope outdated. However, in reality, it’s among the top commonly used instruments for science around the globe, since it can make the invisible visible easily, inexpensively and without the need for a specialist equipment.
- education: The primary equipment used in the biology classes beginning at middle school to university.
- Health: Laboratory technicians use it in clinical settings to study blood smears, urine as well as tissue biopsies.
- Microbiology This is used to detect pathogens, fungi, and parasites when conducting research or diagnosing situations.
- Quality control as well as industry: Manufacturers use it to evaluate fabrics, textiles as well as semiconductor components.
- Forensics The investigators employ it to study hair, fibers and other evidence of trace.
- Field and hobby science: Entomologists, rock collectors and citizen scientists use it for their everyday observations.
Contrary to electron microscopes, the light microscope allows you to observe live cells dividing and moving in real-time. This is the primary reason it’s not been substituted, even though higher-powered instruments are now accessible.
How a Light Microscope Works
In simple terms, light travels through or bounces off the object, then travels across the lens of an objective (which creates one of the magnified images) Then it is reflected back through the eyepiece which then magnifies the image for your eyes.
Here’s the entire process, step-by step:
- A light source, such as an the LED or halogen lamp or mirrors — illuminates an object from underneath (or from above for stereo-microscopes).
- The light is absorbed by the condenser and is focused by it onto the subject.
- The objective lens catches the light, and creates the image, magnified.
- An eyepiece is also referred in the form of the Ocular lens, magnifies an image for the viewer or camera.
- It is passed through or bounces off the object that is on the stage.
Total magnification simply refers to the magnification of an objective multiplied by eyepiece magnification. A 40x objective coupled with an eyepiece that is 10x will give 400x total magnification.

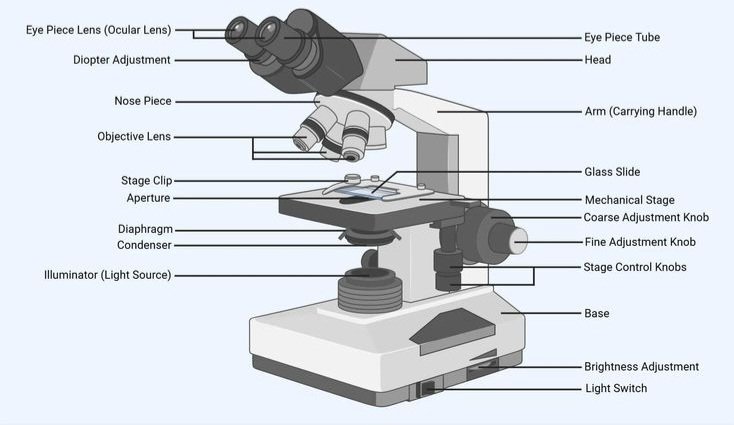

The Main Parts of a Light Microscope
Every light microscope, ranging from an affordable $50 model for students to a $3,000 medical unit is built around the same basic elements.
| Part | Function |
| Eyepiece (Ocular Lens) | Magnifies the image to allow for better the viewing. Usually 10x |
| Objective Lenses | A selection of lenses (commonly 4x 10 40x, 40x, 100x and 100x) that have the greatest magnification |
| Nosepiece (Turret) | The mount is rotated to support the lens of the objective. |
| Stage | Flat platform which holds the slide |
| Stage Clips / Mechanical Stage | It secures the slide and allows for precise movement |
| Condenser | It focuses light on the object |
| Iris Diaphragm | Controls how much light gets to the specimen. |
| Light Source | Illuminates the object (LED or halogen) or mirror) |
| Coarse Focus Knob | Makes major adjustments in order to get the picture to focus. |
| Fine Focus Knob | Makes minor adjustments to get sharp, precise images |
| Arm | The eyepiece is connected to the base, and is used to carry the eyepiece |
| Base | It supports the entire instrument |
The knowledge of these elements isn’t just helpful for biology tests but is also a lot simpler to read product descriptions and specifications when you’re looking for one.
Types of Light Microscopes
Different light microscopes are designed for the same purpose. Selecting the best type of light microscope is dependent on the subject you’re trying to see.
| Type | Typical Magnification | Best For | Approx. Price Range |
| Compound Microscope | From 40x to 1,000x (up to 1,500x using oil immersion) | Cells cells, tissues, bacteria blood Smears | $100-$3,000+ |
| Stereo (Dissecting) Microscope | 10x-80x | Insects, plants, rocks, circuit boards, dissection | $100-$1,500 |
| Digital/USB Microscope | 20x-1,000x (varies) | Screen-based video image capture classes | $30-$500 |
| Phase-Contrast Microscope | 40x-1,000x | Live viewing, clear, and uncolored cells | $500-$5,000 |
| Fluorescence Microscope | 40x-1,000x | The recognition of objects that are marked | $2,000-$50,000+ |
| Confocal Light Microscope | up to 1,000x or more with high resolution | 3D imaging that is research-grade and high-quality for labeled cells | $50,000+ |
Prices are general market prices and may vary depending on the brand or region as well as retailer So it’s a good idea to verify prices with the suppliers prior to making a purchase.
Compounded microscopes have become the best method of viewing thin translucent things like the cells of slides. Stereo microscopes however are more suited to transparent, 3D objects like coins, insects, and even smaller electronic devices, since it offers 3-D pictures at a smaller size. USB and digital microscopes have become increasing popular in schools since they allow students to see the same picture in a screen instead of having every person move their eyepiece.
Light Microscope vs. Electron Microscope
One of the most frequent problems is the way an optical microscope is different from the electron microscope. They’re designed for different job requirements.
| Feature | Light Microscope | Electron Microscope |
| Illumination source | Visible light | Electron beam |
| Magnification that is useful | ~1,000-1,500x | Up to ~2,000,000x |
| Resolution limit | 200 nanometers | ~0.05-0.2 nanometers |
| You can view live specimens | Yes | It is not necessary. All you need is the use of a vacuum as well as sample preparation |
| Color imaging | Yes the color is natural. | Grayscale is not the norm, but typically grayscale |
| Cost | Low to moderate | Very high |
| The typical setting | Clinics, schools and field labs | Advanced research institutions |
If you want to observe living cells grow or divide the light microscope is the only option that is realistic. If you’re looking to observe things like ribosomes or viruses it’s best to use an electron microscopeA light microscope isn’t able to get there.
Magnification and. Resolution: The Distinction Most People Miss
This is where the majority of buyers are sloppy. Magnification refers to how large the image appears. Resolution refers to the capacity of differentiate two points that are very close as distinct and resolution and not magnification are what determines image clarity.
Since visible light is a spectrum that ranges from 400-700 nanometers, there’s a physical limit that’s known as the diffraction limit approximately 200 nanometers. This is the limit that any light microscope cannot overcome, regardless of how powerful its lenses are. This is why the light microscope isn’t able to detect viruses, which usually measure between 20 to 300 nanometers.
A common error is thinking that a higher magnification is always better quality images. Above the limit of resolution, ramping up the magnification will make the image appear larger and more blurred often referred to as “empty magnification.” Utilizing an immersion oil between the slide and the lens at 100x could increase clarity and resolution even further. This is the reason why oil immersion is a the norm for viewing bacteria.
Who Uses Light Microscopes — and When
Light microscopes are used in a surprising array of occupations and interests:
- students (K-12 or university) in science fairs, biology labs and courses
- Laboratory technicians from clinical laboratories and pathologists who perform the blood tests, urine analysis and biopsies screening
- Researchers and microbiologists in culturing and identifying microorganisms
- Veterinarians conducting fecal examinations including skin scrapings, skin scrapings, and blood smears
- Inspections for quality assurance in electronics, textiles and materials science
- Scientists, amateurs, and citizens investigating coins, insects, rocks or the ponds of life
- Forensic experts examine hair, fibers and other evidence of trace
In general it is the ideal tool to use for any situation where you require to examine a specimen between 10x to 1,000x magnification and the color of the image or live-streaming is more important than the resolution.
How to Choose the Right Light Microscope
Selecting the best microscope depends on finding the right instrument for your specific needs rather than just purchasing the highest magnification level you will locate.
1. Determine your principal use case.
- The ability to view small, nitty objects such as bugs or even circuit boards, the stereo microscope
- Examining tissues, cells or microorganisms in slides with the compound microscope
- Screen sharing or recording video with an USB or digital microscope
- Live-cell or fluorescent research using a phase-contrast microscope or a fluorescence microscope
2. Match the magnification to the task at hand.
| Task | Recommended Magnification |
| Insects, plants and rocks | 10x-40x |
| Onion cells, cheek cells | 100x-400x |
| Bacteria | 400x-1,000x (with oil immersion) |
| Blood cells, parasites | 400x-1,000x |
Third step: Assess some of the practical elements.
- Glass lenses provide a clearer image than plastic, but they are more expensive
- LED lighting is cooler and lasts longer than halogen.
- A mechanical stage permits more precise slide movements than clips that are simply clipped
- A camera built into the device or digital output is essential in case you have to save or share photos
- Metal frames will stand up longer as opposed to a plastic build
Pricing and Buying Guidance
Prices can vary greatly based on the quality of construction, optics, and purpose of application:
- Student microscopes that are entry-level: roughly $50-$150, ideal for home schooling and enthusiasts.
- Mid-range lab or classroom microscopes approximately $150 to $600 often found in schools and smaller clinics
- professional compound microscopes about $600-$3,000 employed in clinical labs as well as universities.
- Microscopes that are research grade (phase-contrast or fluorescence) from $2,000 $50k or greater employed in research universities and institutions
No matter what tier you’re in some things are important more than the price sticker warranties, the availability of replacement LEDs or bulbs and whether repair or calibration service is accessible. Specialized lab and scientific equipment providers — in contrast to the general electronics storesare more likely to provide better after-sales assistance, which is crucial especially for clinical and compound equipment that are used regularly.
How to Use a Light Microscope: Step-by-Step
- Place the microscope on a flat and stable area near a source of power in the case of an electrical.
- Start with the smallest power objective, usually 4x. Then, it is rotated to the desired position.
- Set the slide in the center of your stage, and then secure it using the clips for stage.
- Switch on or adjust the source of light and then move the diaphragm iris partially.
- Use the eyepiece to look through and use the coarse-focus control to move the object close to the eye.
- Change the fine focus knob to increase the sharpness of the image.
- Set the diaphragm as well as the condenser to achieve the highest brightness and contrast.
- Moving up to higher-power goals (10x 10x, and finally forty times) but only after having focused on low power and using the fine-focus technique at each stage.
- To make 100x oil immersion you can add a drop oil for immersion onto the slide prior to rotating the object into position.
- Clean the lenses using lens paper after each use. place the microscope inside the cover of dust.
Maintenance, Care, and Common Mistakes
A well-maintained light microscope could be used for a long time However, a few routines can make a huge difference.
Best practices for building:
- Take it on with two hands one on each arm, the other under the base
- Clean lenses should be cleaned only using lens paper. Never cloth or tissue, as they could scratch the glass.
- Clean off the any oil that has been absorbed off the objective 100x after using
- Keep it in the cover of a dust catcher in a dry place
- The nosepiece can rotate the lens to rotate objectives not by grasping the lens by itself
Unfortunate errors to avoid:
- The focus should be at a high magnification, before beginning at low power
- Utilizing the coarse focus knob with high-power could cause slides to crack or cause damage to lenses
- Leave the immersion oil on the lens following an immersion session
- Contacting lenses using your fingers is not recommended, as skin oils degrade the lens with time.
- The microscope is left unattended in a humid or dusty area
- By pushing a focus knob beyond its natural resistance point
Safety Notes
A few basic steps can will go a long way
- Keep light-source microscopes that are powered by electricity away from liquids and disconnect them prior to cleaning.
- Take care to handle glasses slides and coverslips in a safe manner to avoid cutting yourself
- Follow the standard lab protocol including gloves, safe disposal, and disinfection when handling biological samples, such as blood or cultures.
- Allow the halogen bulbs to cool completely when replacing them as they can be extremely hot in the course of use.
Alternatives to Consider
A light microscope may not be an appropriate instrument to do the task. Based on the things you want to look at it is possible that one of these tools will be better suited:
| Alternative | When to Choose It Instead |
| Electron Microscope | Sub-nanometer resolution is required like for organelles or viruses. |
| Digital Magnifier or Loupe | You just need simple, low-magnification visual inspection under 10x |
| Confocal Microscope | You require 3D imaging of live cells that are fluorescently labeled to conduct research. |
| Atomic Force Microscope (AFM) | You require detail on the surface on the molecular or atomic scale |
| Smartphone Macro Lens Attachment | You’re looking for casual, low-cost close-up photos, but not microscopy. |
Frequently Asked Questions
What’s the purpose of a light microscope? It’s used to observe small specimens like bacteria, cells, tissues as well as other tiny organisms in healthcare, education research, industrial quality control.
How much is the highest magnification for the microscopy light? Typically up to 1,000x, or approximately 1,500x if you use oil. Beyond that the diffraction limit for visible light prevents more useful resolution.
What is the difference between an eyepiece and a compound microscope? A compound microscope is a particular kind of light microscope – one that utilizes multiple lenses (an eyepiece and an objective) to attain greater magnification.
Does a light microscope detect the presence of viruses? No. Viruses are typically measured between 20 and 300 nanometers. This is less than a light microscope’s 200 nanometer resolution limit. For a person to see a virus, they need using an electron microscope.
What does an expensive light microscope cost? Entry-level student models begin at $50-$150, while mid-range laboratory or classroom models range from $150 to $600, while the professional models for research or clinical use could cost anywhere from $600 to tens of millions of dollars.
Which are the major components of a light microscope? The eyepiece, the objective lens, nosepiece diaphragm, condenser, stage light source, fine and coarse focus knobs, arm and the base.
Do you think a light microscope is similar to the optic microscope? Yes. “Light microscope” and “optical microscope” are both used interchangeably, both refer to instruments that make use of visible light to magnify.
What is the magnification you require to observe bacteria under a microscope? Generally 400x to 1,000x, and often making use of oil infusion at 1000x for an unobstructed view.
What is the different between a stereo and compound microscope? A stereo microscope provides lower magnification, generally 10x to 80x. It also provides a 3D image of objects that are opaque. A compound microscope can offer more magnification up to 1,000x and is designed for thin, transparent specimens that are mounted on slides.
Practical User Experience
The first thing a new user notices is how much the routine matters. Starting on the 4x objective makes the specimen easy to find, and the coarse knob does the work there. At 10x and 40x, the fine focus knob is the one you rely on. Touching the coarse knob at high power feels risky, since it can crack slides or damage lenses.
A mechanical stage makes a noticeable difference. Plain stage clips hold the slide, but small, controlled movements are harder, and at higher magnification that gets tiring over a longer session. Lighting matters too. LED runs cooler and lasts longer than halogen, which is more comfortable, and halogen bulbs need time to cool before you replace them.
The condenser and iris diaphragm take some getting used to. At first the image can look flat or washed out. Adjusting the diaphragm and condenser until brightness and contrast balance fixes this, and it gets quicker with practice.
The limitations show up fast. More magnification doesn’t mean a sharper picture. Past the resolution limit, the image just looks larger and blurrier. Viruses and fine cell structures are out of reach, and oil immersion at 100x adds a cleanup step.
Overall impression: it’s easy to start with and rewarding for cells, bacteria, and live specimens, but it rewards patience. How comfortable it feels depends more on build quality, such as glass optics, a mechanical stage, and LED lighting, than on the magnification number.
Conclusion
A light microscope is an extremely easily accessible and useful tools to study the small world that you can’t be seen with the naked eye From class cell studies in the classroom to diagnostics in the clinic and nature observations. The best choice comes in determining the kind of microscope — stereo, compound digital, research-grade, or even digital as well as the magnification range to the specific job you need and then focusing on glass optics, dependable illumination, and dependable after-sales assistance when purchasing.
If you’re just beginning start by identifying the things you would like to examine first. Then, compare that to the type and magnification tables above, and then evaluate several models within your budget and spend the time to study the proper way to handle and clean. This is what differentiates an instrument that lasts for twenty many years and one that will need replacement in just two years.
These information are gathered from different surveys, medical tests and tech giants like Techradar and more. Our top priority is to provide you valuable information about Light Microscope.
