If you’ve ever been under the microscope parts and wondered how the lenses and knobs actually do it, it’s not just you. one.The majority of people will look at the eyepiece or perhaps the stage; however, the rest of it tends to blur in both literal and metaphorical terms.
This guide explains each major microscope parts that is used, its function, and how it functions. If you’re taking a biology class, creating a lab for your classroom, or trying to determine the reason your picture is blurry, you’ll get the solution in this guide.
The Three Systems That Make Up a Microscope
Each compound microscope regardless of price or brand, regardless of the brand or price is built on three fundamental methods:
- Optical system: lenses that increase the size of the image
- The mechanical system -frames and moving parts that help to hold everything in place
- The illumination system includes the source of light and adjustments that make the object accessible
Knowing the microscope parts this way rather than just a random list, it’s much easier to identify the cause in the event that something doesn’t function properly. This is the method that we’ll follow throughout this guide.
Microscope parts: Quick Reference Table
Part System What It Does
Eyepiece (ocular lens) Optical Enhances the image produced through the objective lens.
Objective lenses Optical Provide the primary magnification of the specimen.
Nosepiece (revolving turbine) Mechanical Holds objective lenses and rotates to change between the lenses.
Tube for the body Optical/Mechanical Connects the eyepiece with the objective lens to ensure they are in alignment.
Stage Mechanical Flat platform which holds the slide
Stage clips/stage mechanisms Mechanical It secures the slide and permits precise movement
Condenser Optical It focuses light on the specimen
Diaphragm of Iris Illumination Controls the amount of light that reaches the specimen.
Illuminator Illumination A light source which is usually an LED or a halogen bulb
Coarse focus knob Mechanical Large adjustments are made to bring the specimen into general view.
Fine focus knob Mechanical Makes small adjustments to give clear detail
Arm Mechanical The base connects to the head, and the handle for carrying
Base Mechanical It stabilizes all microscope parts.

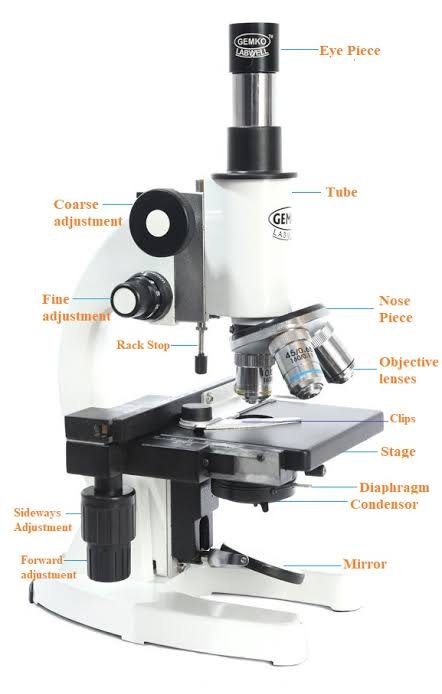

Microscope parts
The Optical System: Where Magnification Happens
What is the function of the eyepiece? accomplish?
The eyepiece, sometimes referred to as the optical lens, is the lens that you view through. The majority of eyepieces magnify 10x, and that multiplies according to the lens that you’re using for the total magnification.
What does the objective lens accomplish?
Objective lenses are placed directly above the specimen and offer the majority of the magnifying power. A typical compound microscope contains four lenses:
- 4x (scanning) — to locate the slide with the specimen
- 10x (low power) — general viewing
- 40x (high power dry) — detailed cell structures
- 100x (oil immersion) — the highest quality detail, if used with a drop of immersion oil
Multiply the strength of the eyepiece by the strength of the objective in order to determine the total magnification. A lens that is 10x with an objective size of 40x will give an overall magnification of 400x. This is the standard setting that biology classes utilize to see animals and plant cells.
Condenser and why it is more important than most people imagine
The condenser is located below the stage and directs light onto your specimen prior to it reaching the lens. In higher quality microscopes, it can be adjusted in height and is referred to as the Abbe condenser.
The part that the majority of guides overlook: Condensers that are set too low are among the main causes of blurry, dim, low-contrast images, even if your lenses are in perfect condition. If your photo appears “off” and cleaning the lens did not help, make sure you examine the condenser’s height before you conclude that something is broken.
The Mechanical System: Structure and Movement
Base and arm
The base is the smooth, heavy base that prevents your microscope from tipping. It’s the curved piece that connects the base to the head. It’s also the thing you’ll need to be holding when carrying the microscope – always keeping the arm in one hand, and one to hold the base.
Clips from stage and stages
The stage is the place where the slide is placed. Simple models use spring clips to keep the slide on its feet; mechanical stages include two knobs that allow you to slide to move left-right or forward-back with small increments that are more precise than guiding the slide by hand.
Nosepiece (revolving turret)
It is the part that rotates and holds several objective lenses. It turns, and the lens clicks in place with each increment of magnification. The best microscopes are “parfocal,” meaning the subject remains roughly in focus, even when you switch lenses; it’s only an adjustment in fine focus, not a complete refocus.
Fine, in contrast to. the fine focus, described in a simple way
This is among the most muddled pair of part, and it’s not without reason. They’re alike and perform similar tasks.
Coarse Focus Fine Focus
Size of adjustment Large Very small
When to use it Initial focus with low magnification Sharpening detail, high magnification
Risk if misused Could crack the slide or even damage the lens with high-powered objectives—very little risk, but slow.
Simple rule: employ coarse focus on the objective with the lowest power (4x). When you reach 40x or 100x, fine focus is your best option.
Microscope parts
The Illumination System: Lighting, Contrast and Control
Illuminator
Modern microscopes typically include an LED illuminator as microscope parts of their base design.Some older or budget models utilize a mirror to reflect external light, rather than generating the light themselves. You’ll find these still in kits for classroom use.
C The diaphragm that makes up the Iris
Diaphragms regulate the amount of light reaching an object; too much illumination could obscure details while too little could make images hard to interpret and interpret. Most simple microscopes feature this element in the form of a rotating disc with holes instead of an adjustable aperture for this purpose.
Remember this advice If an image is “too plain,” without enough contrast. Adjusting the diaphragm will often provide better relief than switching bulbs or lenses.
Compound Vs. Stereo vs. Digital Microscopes
Each microscope isn’t made the same, and choosing the “right” set of parts is dependent on the object you’re looking for.
Feature Compound Microscope Stereo Microscope Digital Microscope
Best for Cells, tissues, thin slide samples Incomplete objects — insects, circuit boards, and rocks Recording, sharing in classrooms, and low-vision users
Magnification 40x-1000x+ 10x-40x It varies, but typically between 20x and 1000x using software zoom
Light path The specimen is passed through Reflections off the surface of the specimen or captured by a digital sensor
Unique parts Oil immersion objective with condenser with adjustable temperature Wide stage, two objectives to provide a 3D view Image sensor and USB/HDMI output
If you’re considering different types of microscopes prior to buying the one you want, this table will help you make the main factor in making a decision compound microscopes: they are designed intended for objects that are thin enough for light to be able to pass through the lens, while stereo microscope parts are intended used for solid objects, and digital microscopes focus on sharing what you see, not fundamentally different optical paths.
- Learn How the Parts Work Together Step by Step
- Arrange and Secure the Slide
- Then rotate the nosepiece until it is at the lowest lens (4x).
- Then, turn on the light source and adjust the diaphragm until it is at the desired brightness.
- Use the eyepiece to look through and then use the coarse focus dial to bring the object into rough view.
- Change to fine focus to enhance the image.
- Upgrade to a stronger objective as required, using only fine focus to adjust.
- If the image appears dull or has low contrast with higher magnification, you should raise the condenser prior to touching any other item.
Buying Guide: Matching Parts to Your Actual Use Case
No one microscope parts is the “best,” only those most effective for your task can truly succeed in using one.
- For classroom or hobbyist use: Look for solid bases with at least three lenses (4x/10x/40x) as well as LED illumination.. Durability is more important than advanced optics in this.
- Study of cells or tissues: Prioritize a quality Abbe condenser as well as a 100x oil-immersion objective. This is the area where a condenser that isn’t expensive will keep you from achieving your goals the most.
- Inspection of solid objects that are not glass slides. Stereo microscope parts with reflectors and a large working distance are much better than a compound scope.
- Recording or sharing what you observe: Look at digital microscopes equipped with sensors as well as USB or HDMI output. These are particularly useful in remote demonstrations or teaching.
The price tends to be directly linked with the condenser or the quality of the objective lens more than any other cosmetic feature. A properly-made mid-range condenser will enhance the quality of your photo more so than flashier bodies or additional accessories.
Common Mistakes to Avoid: Large
- Common Mistakes to Avoid: Large magnifications using coarse focus lenses are one of the primary contributors to damaged slides, thus necessitating corrective lenses in such instances.
- Lowering the condenser to create an image that is dim and flat.
- Avoiding regular lens cleaning and accepting that smudges are part of the problem.
- By putting pressure on the nosepiece, instead of simply letting it naturally click into place.
- Utilizing the immersion lens on a different model than the 100x objective lens — oil residue is hard to completely remove from lenses that are dry and can ruin every image following.
Frequently Asked Questions
1.Which part make an optical camera essential?. Together, they form the mechanical, optical, as well as illumination system.
2.What’s the purpose that the objective lens serves? Core part include an eyepiece, objective lenses, nosepiece, stage diaphragm, condenser, illuminator, fine and coarse focus knobs, arm and base. The objective lens is the primary lens used to magnify the object. Together with the eyepiece’s magnification, it will determine your total capacity to see.
3.What role does the diaphragm serve in magnifying glasses? This allows light to enter an object and simultaneously changes its brightness and contrast, allowing crystal clear images of the finer detail without the need to remove everything to be able to see the details clearly.
4.My microscope image is blurred? Blurry images usually result from improper control of the focus knob, as well as a low condenser and dirty lenses, or trying to get fine detail with the use of a low-power lens. First, check the condenser’s height because it’s the most often overlooked reason.
5.What is the distinction between coarse and fine focus? Coarse focus makes huge adjustments to the initial focus and is best utilized at a low magnification. Fine focus can make small, precise adjustments and is the only secure alternative at high magnification.
6.What magnification is ideal to view cells? Most classroom cell viewing takes place with 400x (a 40x objective and eyepieces 10x). Oil immersion is 1000x and can be employed to obtain the highest subcellular or bacterial detail.
7.Do all microscopes include a condenser? Most compound microscopes have one. Beginners in their studies should opt for unidirectional lenses over adjustable condensers.
8.What Is the Difference between a Stereomicroscope and Compound Microscope? A compound microscope provides illumination for viewing transparent specimens like cells on slides; stereo microscopes reflect light off solid objects’ surfaces for an illusion of three dimensionality at lower magnification magnification levels.
9.What is the best way to determine when I’m in need of an alternative digital microscope? If you need to record, project, or communicate what you’re seeing for teaching, documentation, accessibility, or other reasons, the digital microscope’s built-in sensor, as well as screen output, can solve this in a different way than a traditional eyepiece won’t.
Conclusion
When you can see the microscope as three interconnected systems: mechanical, optical, and illumination, instead of a list of separate parts, making use of and troubleshooting the other becomes much simpler. The majority of issues with images can be traced to a few common possibilities: the condenser diaphragm or the focus technique. If you’re looking for parts to identify to complete a class assignment, fix a blurry photo, or decide what kind of microscope is best suited to the subject you’re looking at, the key idea is to know the purpose of each part and know precisely where to look if there’s a problem
