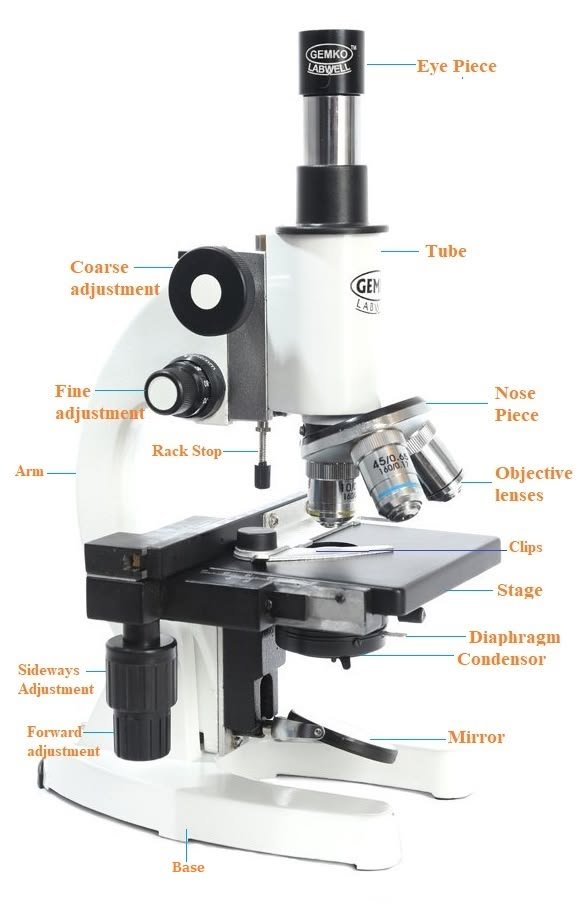

Microscope Labeled Parts at a Glance: A light microscope has 13 microscope labeled parts divided into 3 teams.. The optical components (eyepiece, body tube, nosepiece, top-notches) form the image .The mechanical elements (phase, focus deal with, arm, base) support and position it .The lighting components (illuminator, condenser, diaphragm) cheer up .
Here is the total list, phoned number the approach most identified styles number it:
| No. Part | Group | What it does |
| Eyepiece (ocular lens /Viewing lens) | Optical | EThe lens you look through; generally 10x |
| Body tube | Optical | Carries the picture from the objective to the eyepiece |
| Revolving nosepiece (turret) | Optical | Rotates to switch objectives |
| Objective lenses | Optical | Do the main magnification |
| Stage | Mechanical | Platform that supports the slide |
| Stage clips / mechanical stage | Mechanical | Hold the slide and move it precisely |
| Condenser | Illumination | Focuses light onto the sampling |
| Iris diaphragm | Illumination | Controls just how much light travel through |
| Illuminator (light source) | Illumination | Supplies the light |
| Coarse focus knob | Mechanical | Fast, large focus adjustment |
| Fine focus knob | Mechanical | Small, precise focus adjustment |
| Arm | Mechanical | Connects head to base; the carrying handle |
| Base | Mechanical | Stable foundation, often housing the light |
If your diagram shows only 10 or 11 labels, it is simply leaving out the body tube, the stage clips, or the diaphragm. More on that in the FAQs.
Why Knowing the Microscope Labeled Parts Issues
Knowing microscope labeled parts is not merely an examination need. Every alteration you make on a microscopic lense links to a certain component, so the names alert you what to touch when the picture stops working.
Trainees call for the names for representations and practicals. Educators require them to make clear secure handling. Research laboratory managers and Purchasers need them to compare styles and order substitutes without thinking.
_______________________________________
The Three Teams of Microscope Labeled Parts
Sorting the microscope labeled parts by job makes them a lot much easier to keep in mind than a flat list of thirteen .
Optical Parts: They Build the Image
Eyepiece (ocular lens).. The lens closest to your eye. Most are 10x. Binocular versions have 2, and trinocular layouts add a 3rd port for a camera. Numerous binocular eyepieces consist of a diopter adjustment that compensates for differences between your 2
Body tube (head). Holds the optics between the objective and eyepiece
Revolving nosepiece (turret). The revolving ring that holds the purposes
Objective lenses Placed on the nosepiece, these gather light from the sampling and create the first multiplied image
| Objective | Typical use |
| 4x (scanning) | Locating the specimen and surveying the slide |
| 10x (low power) | General viewing |
| 40x (high power) | Cell structure and detail |
| 100x (oil immersion) | Fine information such as microbes; needs immersion oil |
Countless suppliers color-code the unbiased barrels, which is a convention instead of a requirement, so take a look at the launched zoom on the lens.
Location takeaway: Microscope labeled parts build the photo; the eyepiece improves it for your eye.
Mechanical Parts: They Hold, Move and Focus
Stage. The flat platform that supports the slide. It has an opening (aperture) that allows light miss with the specimen
Stage clips or mechanical stage. Clips hold the slide still. A mechanical stage includes 2 little deals with that move the sample left-right and forward-back, which is much easier than pushing a slide by hand at high power.
Coarse focus knob. Moves the stage or head in large steps. Use it only with the lowest-power objective.
Fine focus knob. Makes tiny adjustments for a sharp image. Use it at every magnification, and exclusively at 40x and 100x.
Arm. Joins the head to the base. It is also your handle.
Base. The hefty base that maintains the instrument stable and typically has the light.
Some microscope labeled parts additionally consist of a shelf quit, a safety and security restriction that stops the stage from rising up until now that the slide hits the goal.
Illumination Microscope Labeled Parts : They Manage the Light
Illuminator. Modern pupil and lab tiny lens capitalize on LED lights, which runs cool and lasts a very long time. Older or budget strategy versions might use halogen lights or a mirror that shows location light.
Condenser. Sits below the stage and focuses light into a cone focused on the sampling. At high power, it matters a good deal, since a poorly established condenser produces a dim, flat picture.
Iris diaphragm. A versatile opening that manages how much light reaches the specimen. It additionally transforms comparison.
Condenser vs diaphragm, basically: the condenser focuses light, while the diaphragm limits it
Exactly How the Light Cours
Works Comply with the light and the parts stop feeling like a random listing
- The illuminator creates light
- The condenser focuses it, and the diaphragm manages simply how much go through
- The light travel through the slide on the stage
- The unbiased lens records it and builds an amplified photo..
- The body tube lugs that picture upwards.
- The eyepiece multiplies it again for your eye.
A fast way to keep in mind this: light trips from the bottom of the instrument to the top
Specifically How to Compute
Total Zoom Multiply the eyepiece power by the objective power
- 10x eyepiece × 4x purpose (objective) = 40x – 10x eyepiece –
- 10x eyepiece × 10x purpose(objective) = 100x – 10x eyepiece –
- 10x eyepiece × 40x purpose(objective) = 400x – 10x eyepiece –
- 10x eyepiece × 100x purpose( objective ) = 1000x – 10x eyepiece
Greater zoom is not immediately better. Resolution, indicating the ability to split two close points, depends upon the goal’s mathematical aperture (NA), a number released on the lens barrel. A higher NA collects extra light and settles finer detail. Amplifying past what the optics can fix just makes a larger blur
Which Part Do You Use When? Order of Use
This is the sequence most teachers and lab trainers recommend:
- Activate the illuminator
- Transform the nosepiece to the lowest-power placement till it clicks.
- Area the slide on the stage and shield it with the clips.
- Seeing from the side, increase the magnification near the objective with the rugged handle (coarse focus knob).
- Look into the eyepiece and focus with the durable handle.(. coarse/fine focus knob, context ke according)
- Change the iris diaphragm for contrast
- Center the interesting location; after that, transfer to the next (objective)
- Refine with the great knob
- When finished, return to the most affordable power, lower the stage, eliminate the slide, and closed down the light
The majority of objectives are parfocal, which indicates the picture remains about in focus when you revolve to the complying with one. That is why you should certainly require just a little fine-focus tweak after switching.
Fixing by Part
When the photo looks incorrect, the repair usually stays in one particular part.
| Problem | Likely part to check |
| Image too dark | Illuminator brightness, iris diaphragm opening, condenser position. |
| Image washed out, no contrast | Diaphragm too open; close it slightly. |
| Blurry at high power | Fine focus; slide upside down; dirty lens. |
| Can’t find the specimen | Start again at 4x and re-center. |
| Slide won’t come into focus | Slide not secured, or specimen thicker than expected. |
| Two eyes see different sharpness | Diopter adjustment on the eyepiece. |
| Hazy spots that move when you rotate the eyepiece | Dirt on the eyepiece lens |
| Spots that stay fixed as you move the slide | Dirt on the slide or objective |
Typical Mistakes Tied per Part.
- Coarse knob at high power. This is the classic way to crack a slide and scratch an objective. Switch to the fine knob.
- Skipping low power. You lose the specimen and waste time.
- Touching the lenses. Fingerprints smear the optics. Use lens paper only.
- Oil on the wrong objective Immersion oil belongs simply on the 100x lens, and it needs to be cleaned later on.
- Lugging it by the phase or eyepiece. Hold the arm with one hand and sustain the base with the other
- Leaving the light on full. It shortens lamp life and tires your eyes.

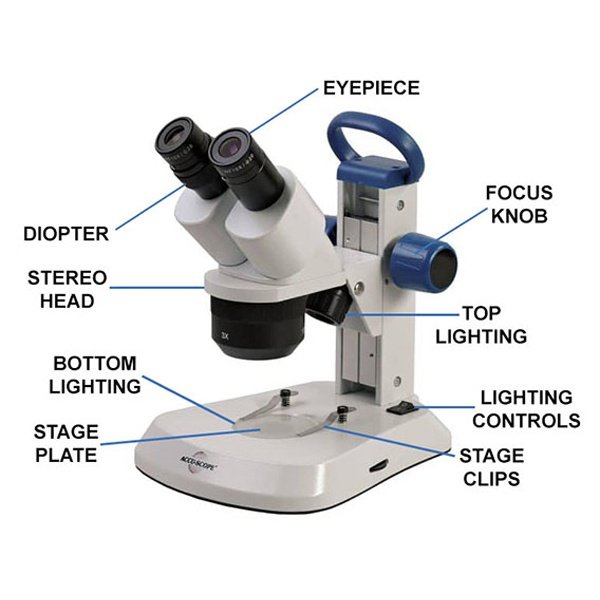

Parts by Microscope Type
- A lot of layouts expose a substance microscope lens; nonetheless, other kinds look different.
| Feature | Compound | Stereo (dissecting) | Digital |
| Typical magnification | High | Low | Varies, screen-based |
| Best for | Thin, transparent slides | Solid 3D objects such as insects, minerals, circuit boards | Sharing and recording images |
| Condenser | Yes | Usually no | Usually no |
| Light | Transmitted from below | Often reflected from above | Built-in LED ring |
| Objectives | Several on a nosepiece | Zoom or fixed pair | Fixed lens plus sensor |
| Eyepiece | One or two | Two, for a 3D view | None; you view a display |
Electron microscopes work with an entirely various principle. They use beam of lights of electrons and electromagnetic lenses instead of glass lenses, so the classified elements above do not apply.
So, to exercise a typical inquiry: a stereomicroscope lens usually has no condenser. Its job is surface and depth viewing, not high-power transmitted-light job
Advanced Parts Worth Knowing
As soon as you have the 13 fundamentals, these terms show up in lab manuals and item requirements –
Mathematical aperture (NA): ‘The light-gathering ability of a lens
Operating range: deep space in between the goal and the slide when in focus. It diminishes as magnification boosts.
- Köhler lighting: a technique of lining up the condenser and diaphragm for high-contrast light
- Abbe condenser: an uncommon condenser style named after Ernst Abbe, whose work made contemporary tiny lens optics –
- Method and achromat purposes: Achromat lenses fix some color mistakes, and apochromatic lenses offer a flatter field of view –
- Trinocular head: a 3rd tube for affixing an electronic cam
A Short Note on History.
Robert Hooke launched complete pictures made through an extremely early substance tiny lense, and Anton van Leeuwenhoek developed single-lens gadgets that exposed microbes. Their work is why the tiny lens is connected so carefully to the expedition of the cell and of microbial life.
Care and Handling of Each Part –
- Lenses: tidy merely with lens paper, and make use of a fully commited lens cleaner when needed
- Immersion oil: tidy the 100x objective quickly after use
- Phase: preserve it neat and totally completely dry; wipe off splashed discolor or water.
- Storage space: lowest-power purpose all set, stage lowered, dust cover on.
- Cord: coil freely and never ever lug the microscope by it.
Acquiring and Purchase Support.
If you are selecting a tiny lens or getting components for an institution or lab, analyze these initially
| What to inspect | Why it matters |
| .Steel structure vs plastic | Sturdiness under day-to-day classroom use |
| Mechanical phase | Easier slide movement at high power. |
| Iris diaphragm and condenser | Aid supply far better comparison and image clearness. |
| Attribute collection (4x, 10x, 40x, 100x) | Select the goals based upon the kind of job you intend to do. |
| LED lights:’ | Runs fashionable and lasts a very long time.’ |
| Binocular head | More comfortable for long sessions |
| Standard objective thread | Easier to find replacement lenses |
| Schedule of spare components | Crucial for multi-year laboratory use. |
Spending plan models have a tendency to trade away metal construction, top quality goals, and a great condenser. Mid-range versions usually include a mechanical phase and better optics. Research-grade versions include functions such as strategy goals and camera ports.
For acquiring, academic providers, laboratory tools suppliers, and online industries are the common courses. Check warranty terms and components schedule in your very own region
Memory Tricks and a Self-Test
Memory aids
- Group by job: see (optical), support (mechanical), shine (illumination).
- Follow the light from base to eyepiece.
- Coarse knob = low power only.
- Condenser focuses, diaphragm limits.
Self-test: name the part
- The lens you look through.
- The ring that holds the objectives.
- The part that supports the slide.
- The knob that is safe at 100x.
- The part that controls how much light passes.
- The part that focuses light onto the specimen.
- The part you carry the microscope by.
Answer key
- Eyepiece (oculre lens/viewing lens).
- Revolving nosepiece (turret)
- Stage
- Fine focus knob
- Iris diaphragm
- Condenser
- Arm
FAQs
1.What are the almost all of a microscope Labeled Parts ?
The almost all consist of the eyepiece, objective lenses, revolving nosepiece, stage, condenser, iris diaphragm, illuminator, tough and excellent emphasis looks after, arm, and base.
2.What are the 3 mostlie all of a microscope Labeled Parts?
Most school courses use the optical, mechanical, and illumination groups. Some textbooks instead use the head, arm and base.
3.Why do some sources checklist 10 components and others 13 ?
They count differently. One may combine the stage and clips, or leave out the body tube or diaphragm. The instrument is the same.
4.What is the difference in between the condenser and the diaphragm?
The condenser concentrates light onto the sampling. The iris diaphragm adjustments just how much light makes it with and impacts contrast.
5.Why use only the great emphasis at high power?
At 40x and 100x, the sincere relaxes actually near the slide. The solid take care of transfers also much, likewise promptly, and can squash the slide or harms the lens.
6.What is the distinction in between the eyepiece and the purpose?
The goal is closest to the sampling and creates the initial magnified photo. The eyepiece is closest to your eye and amplifies that image again.
7.Why begin with the lowest-power purpose?
It provides the biggest visual field, makes the tasting basic to locate, and maintains the lens securely much from the slide.
8.Does a stereo tiny lens have a condenser?
Generally not. It is developed for checking out solid items at reduced power, typically with light from above rather than below.
9.Which Microscope Labeled Parts regulates the lights?
The illuminator control changes the light brightness, while the iris diaphragm controls how much light gets to the sampling.
Conclusion
A microscopic lense can look difficult you prepare it right into 3 job: optical aspects that construct the picture, mechanical. parts that hold and concentrate it, and lights elements that light it. Discover those groups and comply with the light from the base to the eyepiece, and the thirteen names remain in your head. Your list below jobs:.
1. Cover the table over and categorize an empty design from memory.
2. Take the self-test and examine the responses.
3. Work out the nine-step order of use on a prepared slide.
4. If you are acquiring or buying elements, go through the procurement list prior to picking.
